Mozaic Component Technology · Controller
Seagate 7nm integrated controller
The backbone of hard drive progression
Our 7nm integrated controller tightens servo precision and power behavior — enabling higher areal density, faster access times and lower watts/TB.
Shrunk from 12nm, lowering die costs and power consumption
New sample rates every quarter of a nanosecond
Firmware security aligned with upcoming NIST post-quantum standards
Reducing watts per terabyte and cooling load across the drive
What does the Seagate 7nm integrated controller do in a hard drive?
Smarter servo. Faster access.
Built at 7nm, Seagate’s integrated controller delivers hyper-efficient real-time processing with tighter servo control and smarter power behavior — reducing watts/TB and cooling load while maintaining microscopic positioning precision and optimized access times.
The result is higher areal density and unwavering performance for mission-critical workloads — from high-frequency analytics to demanding transactions — with increased security for edge computational operations.
It orchestrates a symphony of spindle speeds, head movements and read/write operations with surgical precision.
What did moving the Seagate controller from 12nm to 7nm change?
Four engineering outcomes of moving the controller from 12nm to 7nm and integrating it in-house.
Servo Core
Its servo core is a data-tracking mastermind, pinpointing data tracks with laser-like accuracy. It allows real-time handling of disturbance detection, adaptive control features, feed-forward compensation and high sample-rate computation.
12nm to 7nm
Reducing chip size allows us to lower die costs and power consumption, accommodating more transistors within the same area, reducing voltage needs and enhancing power efficiency.
4GHz+ Read Channel
The custom read channel analog front-end samples over 4GHz, achieving new sample rates every quarter of a nanosecond — the resolution required to recover data from ultra-dense tracks.
Quantum-Resistant Security
The latest silicon processor upgrade fortifies controller firmware with quantum-resistant security, aligning with upcoming NIST post-quantum standards.
How does the 7nm integrated controller align with NIST post-quantum security standards?
Keeping your data safe, even in the age of quantum computing.
The 7nm integrated controller’s latest silicon processor upgrade fortifies controller firmware with quantum‑resistant security.
This forward-looking leap aligns with upcoming NIST post-quantum standards — underscoring our commitment to innovation, trust and industry-leading security.
Combined with Seagate Secure™ drive-level protection, that means the security model is anchored in the silicon rather than bolted on above it.
Learn about Seagate SecureHow does the 7nm integrated controller cut watts per terabyte while holding servo precision?
It’s a powerhouse of productivity. The 7nm integrated controller unleashes a torrent of real-time processing power in a smaller footprint optimized for energy savings. Pinpoint data positioning, powered by advanced servo algorithms, ensures microscopic precision and optimized access times.
This translates to unwavering performance for mission-critical workloads, from high-frequency analytics to demanding transactions, all with increased security for edge computational operations.
The 7nm integrated controller symbolizes our commitment to in-house design and direct-to-fabrication approaches for silicon solutions. Because Seagate designs the writer, the media, the reader and the controller together, each generation can be tuned as a system rather than assembled from third-party parts.
How does the 7nm integrated controller work with the plasmonic writer, spintronic reader and superlattice media?
Mozaic is not one invention. It is four component technologies engineered in-house to work as a system.

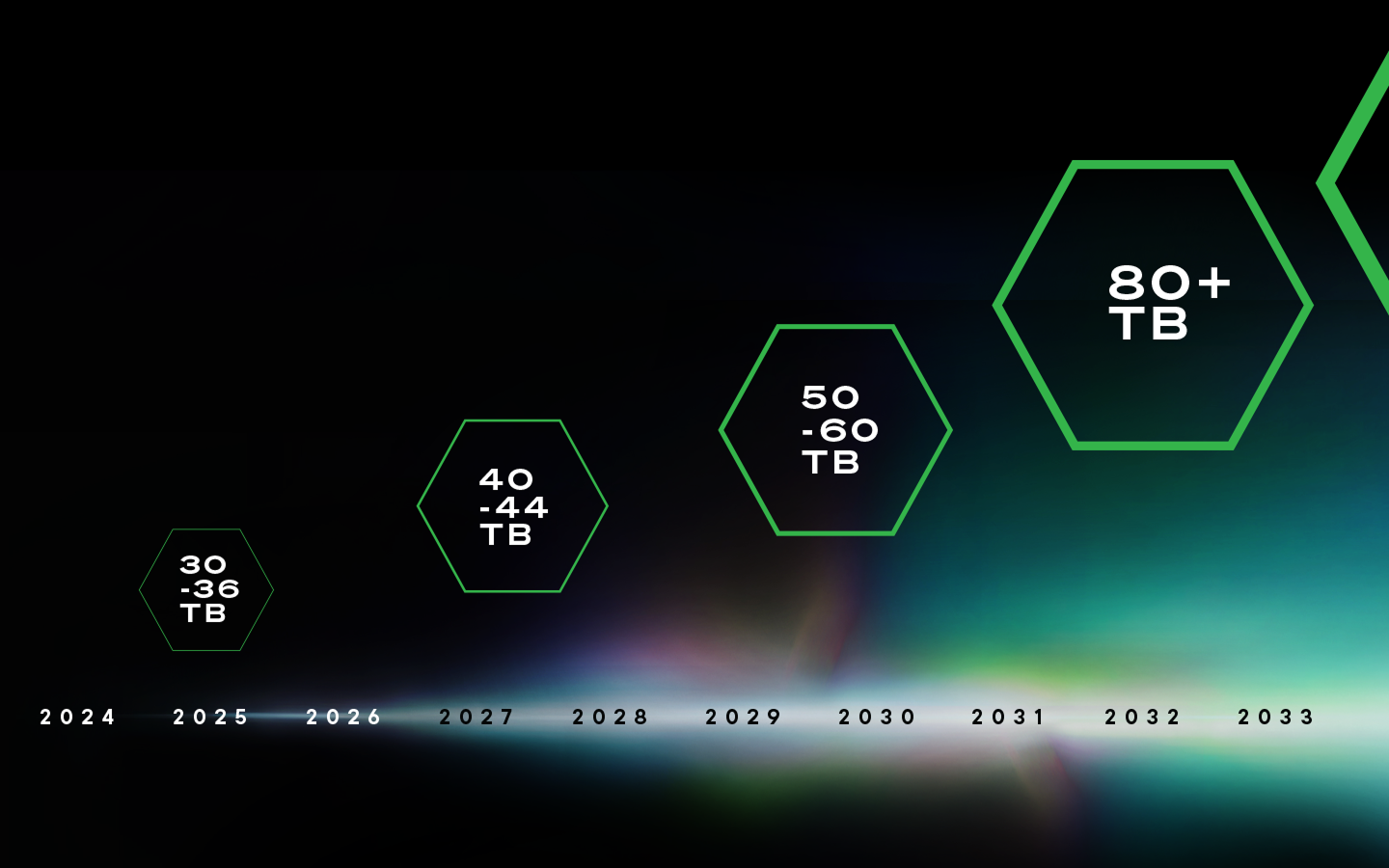

Seagate’s documentation on 7nm servo control and Mozaic 3+
The platform these components add up to, and what it delivers.
7nm integrated controller: frequently asked questions
Servo precision, power efficiency and post-quantum security in the drive’s silicon.
It is the silicon at the heart of Seagate’s Mozaic drives — the backbone of hard drive progression. Built at 7nm, it delivers hyper-efficient real-time processing with tighter servo control and smarter power behavior, reducing watts/TB and cooling load while maintaining microscopic positioning precision and optimized access times.
The servo core is a data-tracking mastermind, pinpointing data tracks with laser-like accuracy. It allows real-time handling of disturbance detection, adaptive control features, feed-forward compensation and high sample-rate computation — orchestrating spindle speeds, head movements and read/write operations with surgical precision.
Reducing chip size lowers die costs and power consumption, accommodates more transistors within the same area, reduces voltage needs and enhances power efficiency. That directly improves watts per terabyte and cooling load.
The integrated controller’s custom read channel analog front-end samples over 4GHz, achieving new sample rates every quarter of a nanosecond.
The 7nm integrated controller’s latest silicon processor upgrade fortifies controller firmware with quantum-resistant security. This forward-looking leap aligns with upcoming NIST post-quantum standards.
Higher areal density requires the head to be positioned over narrower tracks with less error. Tighter servo control plus a faster read channel means the drive can track and recover data from more densely packed tracks, which is what converts the media and head advances into usable capacity.
The 7nm integrated controller symbolizes Seagate’s commitment to in-house design and direct-to-fabrication approaches for silicon solutions. Designing the writer, media, reader and controller together lets each generation be tuned as a system rather than assembled from third-party parts.
