Seagate Nytro® 3530 SAS Solid State Drives (SSD)
Built For Fast Data Center Applications


Seagate Nytro® 3530 SAS SSD

Seagate Products - Nytro 3000 SAS SSD Series
Seagate Nytro 3530 SAS SSD Series
Seagate Nytro® 3530 SAS SSD - 400 GB
3D eMLC NAND Flash Type, Dual 12Gb/s SAS Interface, 5 Years Limited Warranty
#XS400LE10003
Get a Quote!
Seagate Nytro® 3530 SAS SSD - 800 GB
3D eMLC NAND Flash Type, Dual 12Gb/s SAS Interface, 5 Years Limited Warranty
#XS800LE10003
Get a Quote!
Seagate Nytro® 3530 SAS SSD - 1.6 TB
3D eMLC NAND Flash Type, Dual 12Gb/s SAS Interface, 5 Years Limited Warranty
#XS1600LE10003
Get a Quote!
Seagate Nytro® 3530 SAS SSD - 3.2 TB
3D eMLC NAND Flash Type, Dual 12Gb/s SAS Interface, 5 Years Limited Warranty
#XS3200LE10003
Get a Quote!
Seagate Nytro 3530 SAS SED SSD Series
Seagate Nytro® 3530 SAS SED SSD - 400 GB
3D eMLC NAND Flash Type, Dual 12Gb/s SAS Interface, 5 Years Limited Warranty
#XS400LE10013
Get a Quote!
Seagate Nytro® 3530 SAS SSD - 800 GB
3D eMLC NAND Flash Type, Dual 12Gb/s SAS SED Interface, 5 Years Limited Warranty
#XS800LE10013
Get a Quote!
Seagate Nytro® 3530 SAS SED SSD - 1.6 TB
3D eMLC NAND Flash Type, Dual 12Gb/s SAS Interface, 5 Years Limited Warranty
#XS1600LE10013
Get a Quote!
Seagate Nytro® 3530 SAS SED SSD - 3.2 TB
3D eMLC NAND Flash Type, Dual 12Gb/s SAS Interface, 5 Years Limited Warranty
#XS3200LE10013
Get a Quote!
Seagate Nytro 3530 SAS SED FIPS SSD Series
Seagate Nytro® 3530 SAS SED FIPS SSD - 1.6 TB
3D eMLC NAND Flash Type, Dual 12Gb/s SAS Interface, 5 Years Limited Warranty
#XS1600LE10023
Get a Quote!



Overview:

Seagate Nytro LogoLightspeed. Solid. Impressive.

Seagate Nytro Enterprise SSDs support the datasphere with blazing speed, enabling real-time business responsiveness, instantaneous data availability, and meaningful insights.

Tap the ever-growing potential of your data with the broadest portfolio of ultra-high-performance SSD and flash solutions. With maximum performance, low latency, and reduced power consumption, Nytro makes the datasphere dynamic.

The Seagate® Nytro® 3000 SAS SSD family includes the next generation of highcapacity, high-performance SAS SSDs designed with multiple endurance offerings optimized for demanding enterprise applications and improved TCO.

Key Features and Benefits

  • Dual-port and wide-port 12Gb/s SAS interface
  • Industry-leading storage density range up to 15TB
  • Ultra-fast performance of up to 2100MB/s
  • Endurance options for a wide range of enterprise workloads

Best-Fit Applications

  • Server virtualization
  • OLTP databases
  • Software-defined storage
  • All-flash arrays
  • Caching and tiering

Features:

Seagate SecureEnhanced Enterprise Reliability, Data Protection and Security

The Nytro 3000 SSD family leverages Seagate’s decades of enterprise SAS expertise to deliver the highest levels of reliability, data integrity and data security for mission-critical enterprise applications. The Nytro 3000 SSD family helps deliver exceptional data protection and reliability by integrating full internal and external data path protection (T10 DIF), Seagate’s advanced ECC algorithms, media lifecycle management, and other techniques for extending flash memory life. With advanced power-loss data protection, the Nytro 3000 SSD maintains high data integrity to help prevent loss of user data in the event of unexpected power interruptions. The Nytro 3000 SSD family implements security features to prevent unauthorized access to a drive and safeguards stored data with three levels of security, including Secure Downloads & Diagnostics, TCG-compliant Self-Encrypting Drive and FIPS drive.1


Industry-Leading Performance up to 2100MB/s

The Nytro 3000 SSD family delivers ultra-fast, consistent and easily scalable performance that saturates dual 12Gb/s SAS bandwidth, providing an effective 24Gb/s wide-port interface along with legacy sign and dual-port dynamic configurations. By removing the storage bottleneck, it significantly improves overall system and application responsiveness and provides consistent low-latency data access, reliably accelerating enterprise and cloud storage systems.


High-Capacity Solution With Multiple Endurance Offerings

Enterprise applications have different storage workload requirements for performance, endurance and cost. The optimal storage solution for databases or virtualization with a typically mixed read/write workload, for example, requires the highest random read/write IOPS, ultra-low latency and high endurance. Content streaming applications with highly intensive read workloads, however, demand high sequential read throughput and high storage density at the lowest cost per gigabyte. The Nytro 3000 SSD family offers an industry-leading range of capacities up to 15TB in a 2.5-inch form factor, to increase enterprise storage density in data centers. It also enables lower TCO by offering four endurance categories to match cost and performance requirements of all enterprise workloads.

1 Self-encrypting drives (SED) are not available in all models or countries. May require TCG-compliant host or controller support.

Specifications:


Specifications Nytro 3530 — Light Endurance
Capacity 3.2TB 1.6TB 800GB 400GB
Standard Model Number1 XS3200LE10003 XS1600LE10003 XS800LE10003 XS400LE10003
Seagate Secure™ SED Model1,2 XS3200LE10013 XS1600LE10013 XS800LE10013 XS400LE10013
Seagate Secure FIPS 140-2/Common Criteria Mode1,2 XS1600LE10023
Features
Interface Dual 12Gb/s SAS Dual 12Gb/s SAS Dual 12Gb/s SAS Dual 12Gb/s SAS
NAND Flash Type 3D eMLC 3D eMLC 3D eMLC 3D eMLC
Form Factor 2.5 in × 7mm 2.5 in × 7mm 2.5 in × 7mm 2.5 in × 7mm
Performance at Max Power Limit
Sequential Read (MB/s) Sustained, 128KB3,4 2100 2100 2100 2100
Sequential Write (MB/s) Sustained, 128KB3,4 2000 2000 1710 810
Random Read (IOPS) Sustained, 4KB3,4 400,000 400,000 400,000 245,000
Random Write (IOPS) Sustained, 4KB3,4 150,000 145,000 95,000 45,000
Random 30% Write (IOPS) Sustained, 4KB3,4 270,000 290,000 250,000 120,000
Performance at 9W Power Limit
Sequential Read (MB/s) Sustained, 128KB3,4 2100 2100 2100 2100
Sequential Write (MB/s) Sustained, 128KB3,4 1260 1260 1260 810
Random Read (IOPS) Sustained, 4KB3,4 375,000 375,000 375,000 245,000
Random Write (IOPS) Sustained, 4KB3,4 80,000 115,000 95,000 45,000
Random 30% Write (IOPS) Sustained, 4KB3,4 175,000 225,000 225,000 120,000
Average Latency (μs)3 85 85 85 85
Endurance/Reliability
Lifetime Endurance (Drive Writes per Day) 3.0 3.0 3.0 3.0
Nonrecoverable Read Errors per Bits Read 1 per 10E18 1 per 10E18 1 per 10E18 1 per 10E18
Annualized Failure Rate (AFR) 0.35% 0.35% 0.35% 0.35%
Limited Warranty (years) 5 5 5 5
Power Management
+5/+12V Max Start Current (A) 0.44/0.47 0.44/0.42 0.44/0.41 0.44/0.41
Configurable Power Limit Settings (W) 7 to 14 7 to 14 7 to 14 7 to 14
Average Idle Power (W) 3.0 3.0 3.0 3.0
Physical
Height (mm/in, max)5 7.00mm/0.276in 7.00mm/0.276in 7.00mm/0.276in 7.00mm/0.276in
Width (mm/in, max)5 70.10mm/2.760in 70.10mm/2.760in 70.10mm/2.760in 70.10mm/2.760in
Depth (mm/in, max)5 100.45mm/3.955in 100.45mm/3.955in 100.45mm/3.955in 100.45mm/3.955in
Weight (g/lb) 85g/0.187lb 85g/0.187lb 85g/0.187lb 85g/0.187lb
Carton Unit Quantity 10 10 10 10
Cartons per Pallet/Cartons per Layer 90/9 90/9 90/9 90/9

1 Nytro 3130—Tunable Endurance drives only: JEDEC 218 Drive Writes per Day (DWPD) endurance adjustable by modifying user capacity
2 Not all drives may be available in all countries. Seagate Secure drives meet ISO/IEC 27040 and NIST 800-88 standards and may require use of TCG-compliant host or controller support.
3 Dual-port performance. All performance measured at queue depth of 32 per PHY at beginning of life. System application performance may vary based on SAS host and prior system workload.
4 The single-port performance will be the same as the dual-port performance up to the limits of the single port interface as follows: 1100MB/s of 64KB sequential reads and writes; 225,000 IOPS of 4KB random reads and writes.
5 These base deck dimensions conform to the Small Form Factor Standard (SFF-8201) found at www.sffcommittee.org. For connector-related dimensions, see SFF-8223 (SAS models).

Views:

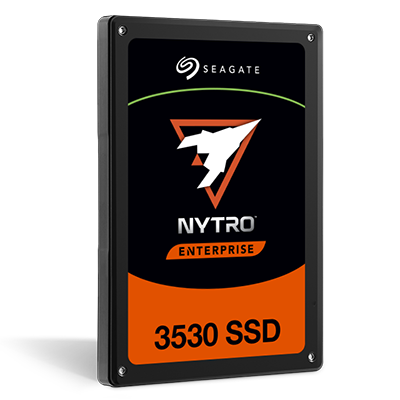

Right View

Right Angle View

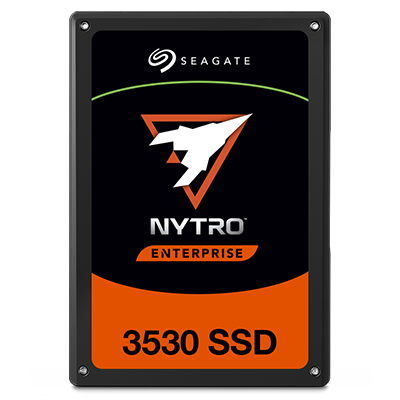

Front View

Front View

Left View

Left Angle View


Documentation:

Download the Seagate® Nytro® 3000 SAS SSD Series Datasheet (.PDF)
