Seagate Exos 7E2000 2.5-Inch Internal 512n SATA Enterprise Hard Drive
Perfect for enterprise-class boot drives, blade and dense servers


Seagate Exos 7E2000 2.5-Inch Internal 512n SATA Enterprise Hard Drive

Seagate Products
Seagate Exos 7E2000 2.5-Inch Enterprise Hard Drives - 512n SATA
Seagate Exos 7E2000 2.5-Inch Internal 512n SATA Enterprise Hard Drive - 1 TB
512-Native Format, 128MB Cache, 7200RPM, SATA 6Gb/s Interface, 5 Years Limited Warranty
#ST1000NX0423
Our Price: $152.00
Seagate Exos 7E2000 2.5-Inch Internal 512n SATA Enterprise Hard Drive - 2 TB
512-Native Format, 128MB Cache, 7200RPM, SATA 6Gb/s Interface, 5 Years Limited Warranty
#ST2000NX0403
Our Price: $280.00



Exos EnterpriseOverview:

Trusted. Efficient. Versatile.

For everything Enterprise storage, there's Exos E—the safest and most powerful way to traverse the datasphere and harness its full potential. Always on and always working, the Exos E series of hard drives is loaded with advanced options for optimal performance, reliability, security and user-definable storage management. Built on generations of industry-defining innovation, Exos E is designed to work and perform consistently in enterprise-class workloads.

The Datasphere's Only 2.5-Inch Nearline Hard Drive

The Seagate Exos™ 7E2000 enterprise hard drives can store large amounts of data without using a ton of system space—up to 2000GB in a compact 2.5-inch form factor. Exos 7E2000 provides the density, low power consumption and data integrity needed in traditional data centers and the cloud.

Up to 2TB (2000GB) of storage in a 2.5-inch form factor.* Exos 7E2000 provides the density, low power consumption and data integrity needed in traditional data centers and the cloud.

  • Securely access high integrity data with 12Gb/s SAS and SATA 6Gb/s interfaces
  • Up to 50% improvement in watts/TB and up to 18% sequential performance improvement**
  • Maximum system availability backed by a 2M-hr MTBF
  • Advanced Write Cache translates into the industry's best response times and the fastest data transfers
  • Seagate Secure™ capabilities ensure authentic and trusted products from a secure supply chain, available with hardware-based encryption (SED), Instant Secure Erase (ISE), TAA compliance and FIPS 140-2.

Best-Fit Applications

  • Storage-hungry business applications
  • Storage area networks (SAN) and network attached storage (NAS)
  • Maximum-capacity entry-level servers and blade servers
  • Rich media content storage
  • Enterprise backup and restore— D2D, virtual tape
  • Cloud computing

* Formerly Enterprise Capacity 2.5 HDD
** Compared to previous generation of hard drive

Features:

Trusted Bulk Data Storage in a Small Data Center FootprintTrusted Bulk Data Storage in a Small Data Center Footprint

Exos 7E2000 drives optimize your data center footprint in a proven 2.5-inch form factor for infrastructures requiring highly reliable access to bulk data. Conventional magnetic recording (CMR) technology helps Exos 7E2000 catalyze the datasphere, enabling data center architects and IT professionals to deliver trusted performance, rock-solid reliability and ironclad security for demanding 24×7 operations. A 2M-hr. MTBF rating with supported workloads of 550TB/year, dense data storage and low power consumption help you meet your storage SLAs while lowering TCO.

Significant Hard Drive Power Savings

Exos 7E2000 drives ensure data confidence with a reliable, low-power platform for efficient bulk storage operations, even in harsh data center environments. Exos 7E2000 helps reduce per-gigabyte cooling and energy costs by packing high capacities into an SFF, lowpower consumption drive. Included PowerChoice™ technology empowers IT organizations to tailor systems for optimal performance and power consumption, resulting in power savings of up to 35% over traditional 3.5-inch drives, and potentially operating as low as 1.1 watts when idle.

Seagate Secure

Enhanced Enterprise Reliability, Data Protection and Security

Exos 7E2000 security features help protect data where it lives—on the drive. Exos 7E2000 drives help prevent unauthorized access and safeguard stored data with security levels that include Secure Downloads & Diagnostics, TCG-compliant Self-Encrypting Drive and government-grade FIPS tamper-resistent hard drive.1 Seagate Secure™ drives simplify drive repurposing and disposal, help protect data-at-rest, and comply with corporate and federal data security mandates.



1 Self-Encrypting Drives (SED) and FIPS 140-2 Validated drives are not available in all models or countries. May require TCG-compliant host or controller support. Instant Secure Erase (ISE) functionality meets the ISO/IEC 27040 and NIST 800-88 guidelines for complete and authoritative drive sanitization.

Specifications:


Specifications - 512 Native SATA 2TB 1TB
Standard Model Numbers ST2000NX0403 ST1000NX0423
Seagate Secure™ Model1
Seagate Secure SED-FIPS Model1,2
Features
Interface SATA 6Gb/s SATA 6Gb/s
PowerChoice™ Technology Yes Yes
Protection Information No No
Low Halogen Yes Yes
Seagate RAID Rebuild Yes Yes
Reliability / Data Integrity
MTBF 2,000,000hr 2,000,000hr
Reliability Rating @ Full 24×7 Operation (AFR) 0.44% 0.44%
Nonrecoverable Read Errors per Bits Read, Max 1 sector per 10E15 1 sector per 10E15
Power-On Hours per Year (24×7) 8760 8760
Sector Size (Bytes per Logical Sector) 512 512
Limited Warranty (years) 5 5
Performance
Spindle Speed (RPM) 7200RPM 7200RPM
Cache, Multisegmented (MB) 128 128
Interface Access Speed (Gb/s) 6.0, 3.0, 1.5 6.0, 3.0, 1.5
Max. Sustained Transfer Rate OD (MB/s) 136MB/s 136MB/s
Average Latency (ms) 4.16 4.16
Interface Ports Single Single
Rotation Vibration @ 1800 Hz (rad/s²) 16 16
Power Consumption
Average Idle Power (W) 3.87 3.51
Typical Operating, Random Read (W) 5.22 4.74
PowerChoice(TM) Technology (Standby) (W) 1.14 1.14
Power Supply Requirements +12 V and +5 V +12 V and +5 V
Environmental/Temperature
Temperature, Operating (°C) 5°C – 55°C 5°C – 55°C
Vibration, Operating, 5Hz to 500Hz (Grms) 0.5 0.5
Vibration, Nonoperating, 5Hz to 500Hz (Grms) 3 3
Shock, Operating, 2ms (Gs) 25 25
Shock, Nonoperating, 2ms (Gs) 400 400
Acoustics, Typical Idle (bels) 2.8 2.8
Acoustics, Typical Seek (bels) 3.2 3.2
Physical
Height (mm/in, max)2 0.591in/15.00mm 0.591in/15.00mm
Width (mm/in, max)2 2.760in/70.10mm 2.760in/70.10mm
Depth (mm/in, max)2 3.955in/100.45mm 3.955in/100.45mm
Weight (g/lb) 198g/0.437lb 190g/0.419lb
Carton Unit Quantity 40 40
Cartons per Pallet/Cartons per Layer 60 / 10 60 / 10

1 Self-Encrypting Drives (SED) and FIPS 140-2 Validated drives are not available in all models or countries. May require TCG-compliant host or controller support. Instant Secure Erase (ISE) functionality meets the ISO/IEC 27040 and NIST 800-88 guidelines for complete and authoritative drive sanitization.
2 These base deck dimensions conform to the Small Form Factor Standard (SFF-8201) found at www.sffcommittee.org. For connector-related dimensions, see SFF-8223.

Views:

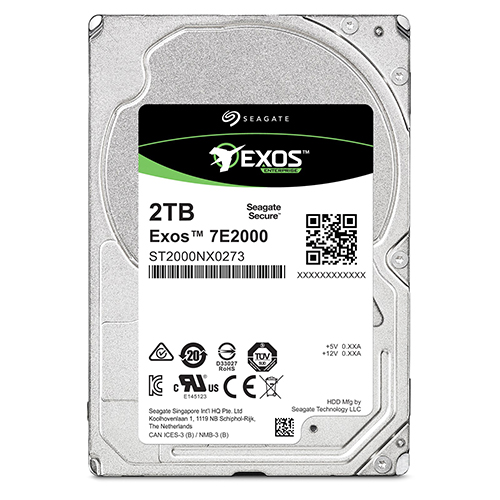

Front View

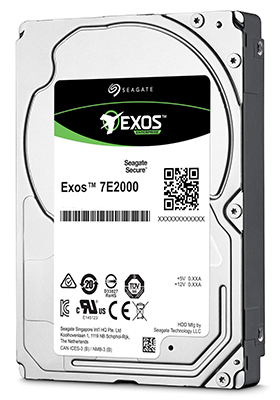

Left Angle View

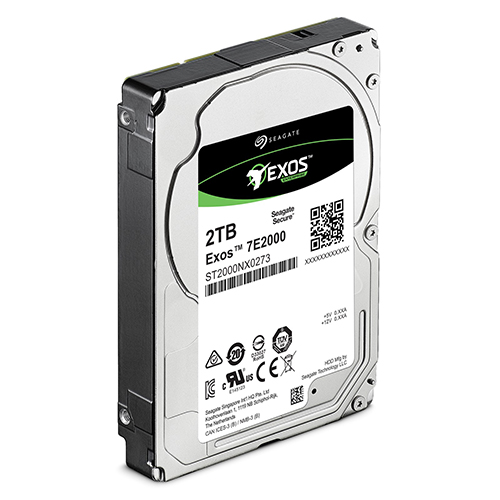

Right Angle View
Inside View

Documentation:

Download the Seagate Exos 7E2000 2.5-Inch Enterprise HDD Datasheet (.PDF)
