Seagate BarraCuda 510 M.2 NVMe Solid State Drives (SSD)
Perfect for upgrading PCs and laptops to ultrafast speed and professional performance

Seagate BarraCuda 510 M.2 NVMe Solid State Drives (SSD)

Seagate Products
Seagate BarraCuda 510 M.2 NVMe SSD
Seagate BarraCuda 510 M.2 NVMe SSD - 256 GB
Get a Quote!
Seagate BarraCuda 510 M.2 NVMe SSD - 256 GB
Get a Quote!
Seagate BarraCuda 510 M.2 NVMe SSD - 512 GB
Get a Quote!
Seagate BarraCuda 510 M.2 NVMe SSD - 512 GB
Get a Quote!
Seagate BarraCuda 510 M.2 NVMe SSD Refresh Series
Barracuda510 (Refresh) M.2 NVMe SSD - 250GB
Get a Quote!
Barracuda510 (Refresh) M.2 NVMe SSD - 500GB
Get a Quote!
Barracuda510 (Refresh) M.2 NVMe SSD - 1TB
Get a Quote!


Seagate BarraCudaOverview:

Speed Up Your Computer.

The Seagate BarraCuda 510 SSD—legendary storage designed for taking your data to the next level of performance, reliability, and efficiency.

BarraCuda solid state drives come in both M.2 2280 form factors, perfect for ultra thin and ultra small laptops, mini PCs, and desktop PCs that need next-level SSD speed for accelerated applications and multitasking.

Key Advantages

  • Amazing speed with next-level 3D TLC NAND and a PCIe Gen3 ×4, NVMe 1.3 unlock sequential read/write speeds of up to 3400/2180MB/s
  • The trusted dependability of the BarraCuda brand with a 5-year limited warranty and MTBF of 1.8M hours.
  • Amazing versatility with capacities of 256GB and 512GB lets you pick the right drive for the job and budget
  • Slim form factor with single-sided M.2 2280 for ultra-thin/ultra-small laptops, mini PCs, and desktop PCs
  • Low power consumption with up to 4.2W active power and multiple low power modes make for longer battery life and cooler running speeds

Best-Fit Applications

  • Ultra-thin laptops
  • Business PCs and laptops
  • Workstations and all-in-one PCs


M.2. NVMe PCIe Gets You There Faster.

Ultrafast Speed

Ultrafast Speed

Unleash the performance of PCIe NVMe speeds that are 6× faster than SATA SSD.

Dynamic Versatility

Dynamic Versatility

Upgrade ultra-thin laptops as well as mini and desktop PCs with an M.2 SSD.

Solid Reliability

Solid Reliability

Leverage BarraCuda durability with a 5 year warranty, 1.8M hours MTBF and up to 320 total terabytes written.

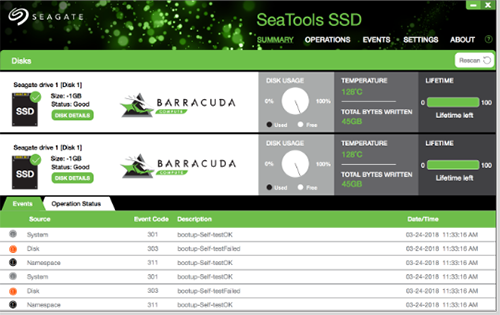

Benefit From SeaTools

Benefit From SeaTools

SeaTools SSD is our free software that tests and analyzes drives. It is completely data safe and easily installs on your system.

Use it for:

  • Health Monitoring
  • Drive Maintenance
  • Overall Monitoring

Insure Your Drive

Insure Your Drive

A Rescue Data Recovery Services plan is available for purchase when you register your BarraCuda drive.1 You’ll have access to a global team of world-class data recovery experts in case of unexpected data loss.

1 Rescue Data Recovery Services plans are not available in all countries. Please contact your Seagate sales representative for further details.


Specifications 512GB 256GB
Standard Model (TCG Pyrite) ZP512CM30011 ZP256CM30011
SED Model (TCG Opal) ZP512CM30031 ZP256CM30031
Interface PCIe G3 ×4, NVMe 1.3 PCIe G3 ×4, NVMe 1.3
NAND Flash Memory 3D TLC 3D TLC
Form Factor M.2 2280-S2 M.2 2280-S2
Sequential Read (Max, MB/s), 128KB1 3400 3100
Sequential Write (Max, MB/s), 128KB1 2180 1050
Random Read (Max, IOPS), 4KB QD32 T81 350,000 180,000
Random Write (Max, IOPS), 4KB QD32 T81 530,000 260,000
Total Bytes Written (TB) 320 160
Mean Time Between Failures (MTBF, hours) 1,800,000 1,800,000
Limited Warranty (years) 5 5
Power Management
Active Power, Average (W) 4.2 3.0
Idle Power, Average (mW) 16 16
Low Power L1.2 mode (mW) 2 2
Temperature, Operating Internal (°C) 0 to 70°C 0 to 70°C
Temperature, Nonoperating (°C) –40 to 85°C –40 to 85°C
Shock, Nonoperating: 0.5ms (Gs) 1500 1500
Height (mm) 80.15mm 80.15mm
Width (mm) 22.15mm 22.15mm
Depth (mm) 2.23mm 2.23mm
Weight (g) 6.9g 6.5g
Special Features
TRIM Yes Yes
S.M.A.R.T. Yes Yes
Halogen Free Yes Yes
RoHS Compliance Yes Yes
System Requirements
System Requirements M.2 (M key) slot, PCIe G3 ×4 interface, Windows 10, Windows 8.1 or Windows 7, Linux

1 Fresh out of box (FOB) performance obtained on newly formatted drive. Performance may vary based on SSD’s firmware version, system hardware, and configuration. Performance based on CrystalDiskMark v.5.2.1 ×64 on Windows 10 host.

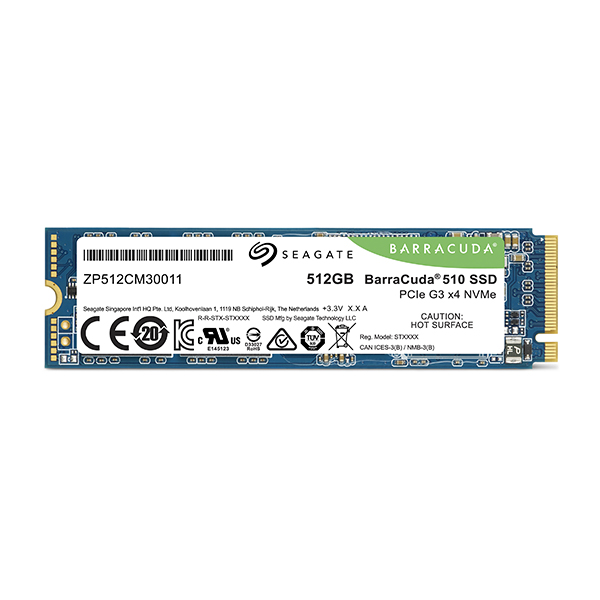

Front View

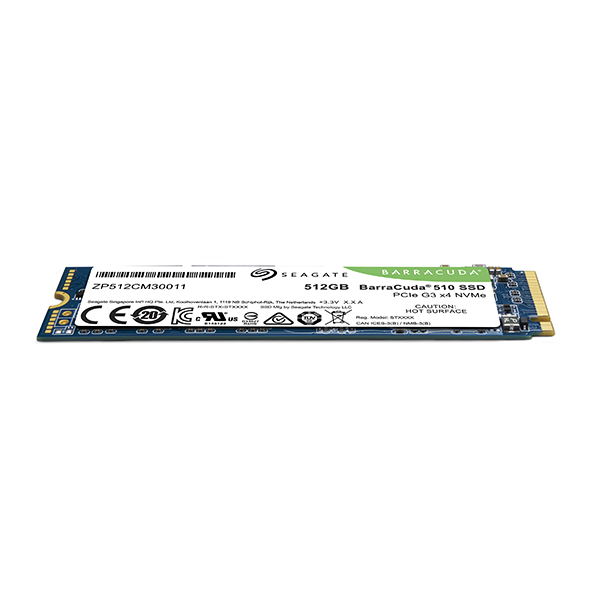

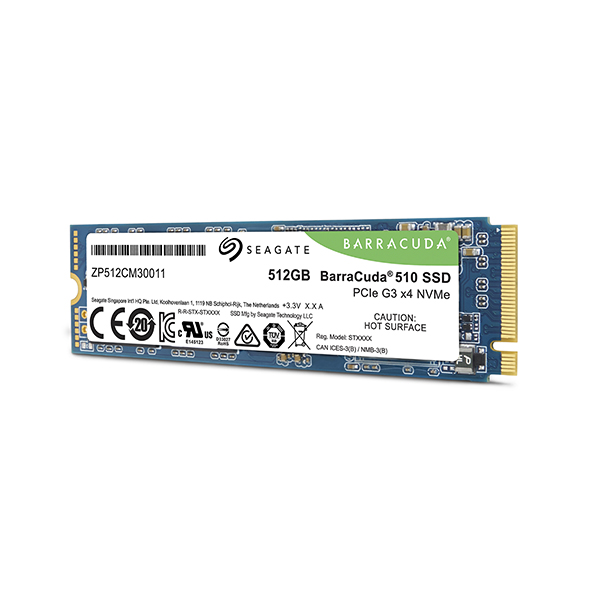

Angle View

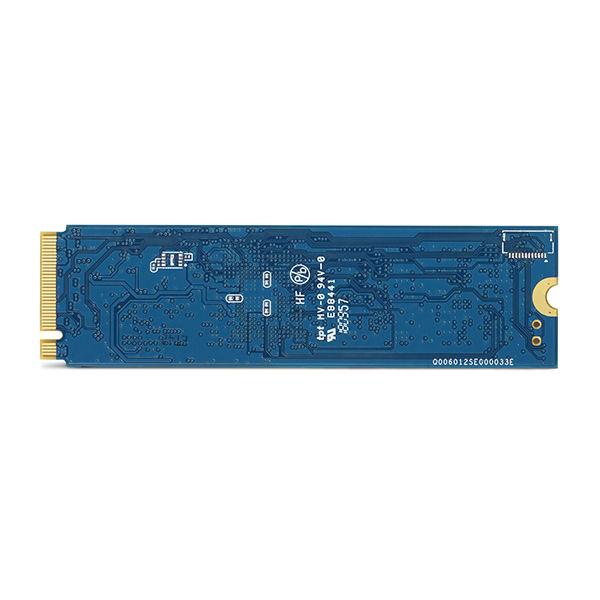

Rear View


Download the Seagate BarraCuda M.2 NVMe SSD Datasheet (.PDF)
